DUO Module 01 - 3D Model

Duo
1

I’ve got a DUO-S, a Module 01 testing board and several modules. working on bare metal software. designing my first board to mount the Module 01 on. looked around for a 3d model to put into KiCad to make sure i’ve got stuff aligned before ordering PCB.

Can Milk-V generate a Step File from their PCB Design Software for this use? Or is one hiding in plain site and I don’t see it?

j1sys

3

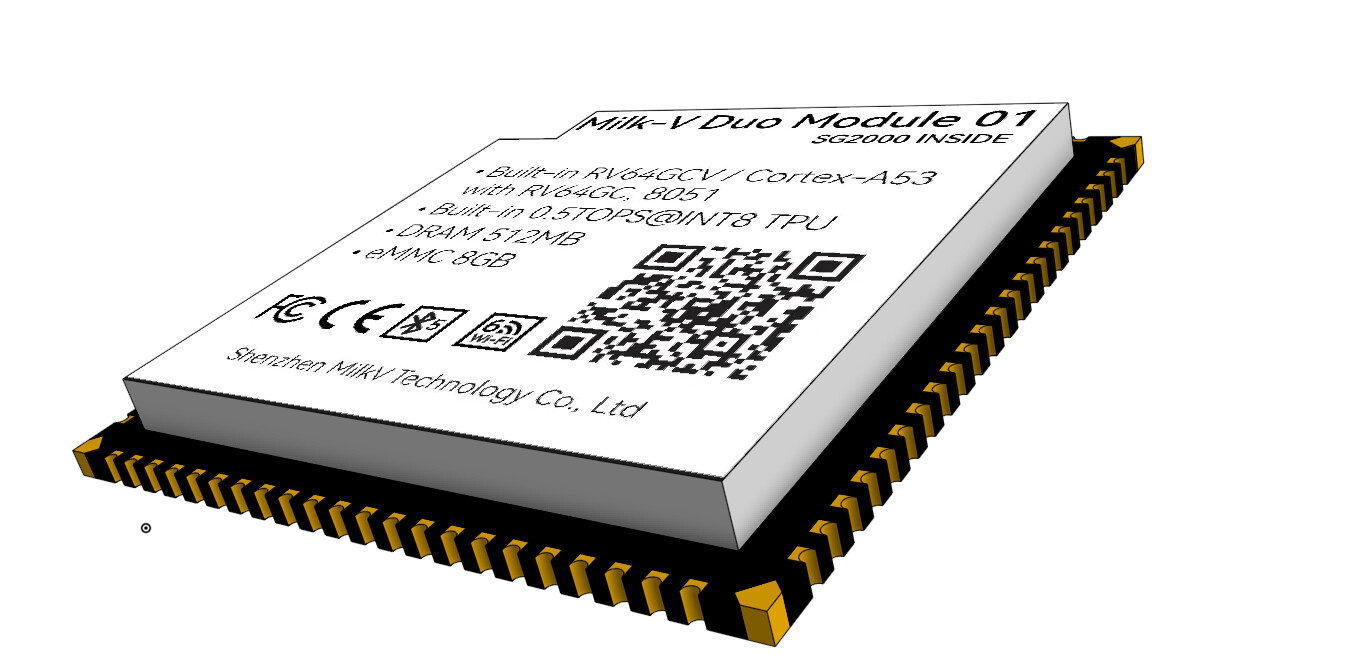

Based on the 2D CAD file publicly available on Milk-V’s GitHub repository, I manually measured the module’s thickness using calipers and created a 3D model. Unfortunately, because I lazily used JLCEDA’s IPEX antenna mount model, sharing the 3D file is inappropriate. However, you should be able to do the same thing yourself in about an hour.

image1360×665 131 KB
