Power LED on board?

mfny · May 20, 2025, 3:42pm

Hello,

I need some clarification as to if there is a power LED on the board and if it is only on when powered via ATX and not the 12v DC Jack ?

sdyspb · December 28, 2025, 10:58pm

Hi,

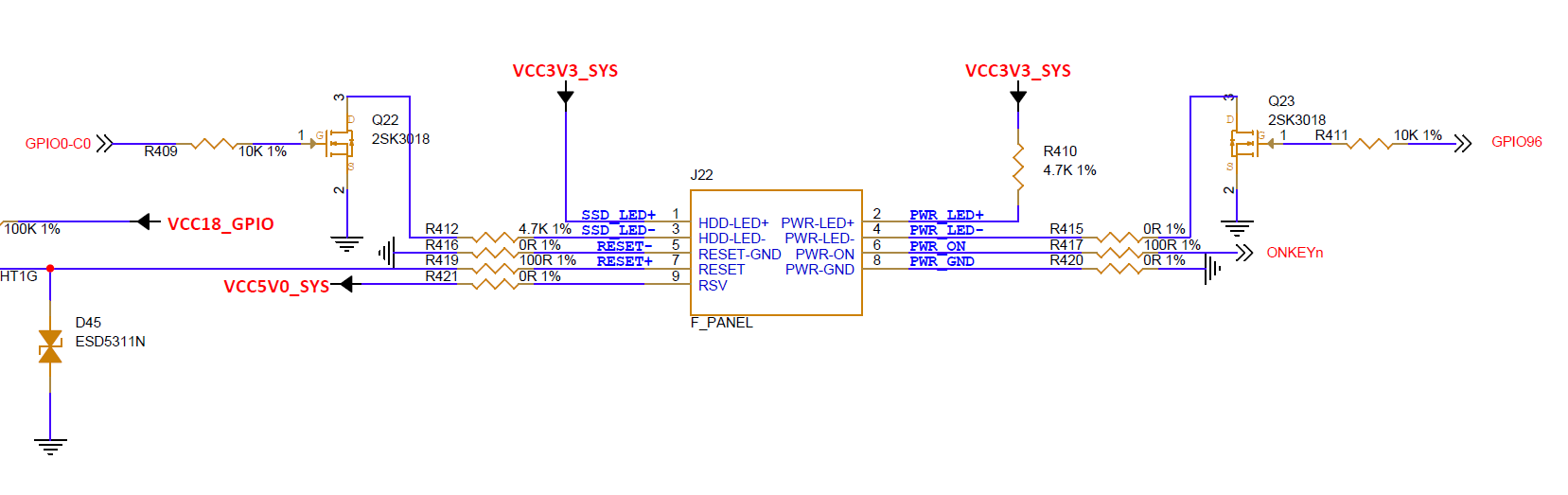

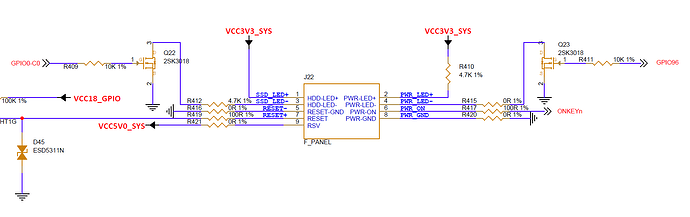

According to schem of Milk-V, you can connect Power LED to Front panel connector because it works with any power source whether it’s ATX, 12V Jack, Type-C PD or PoE+

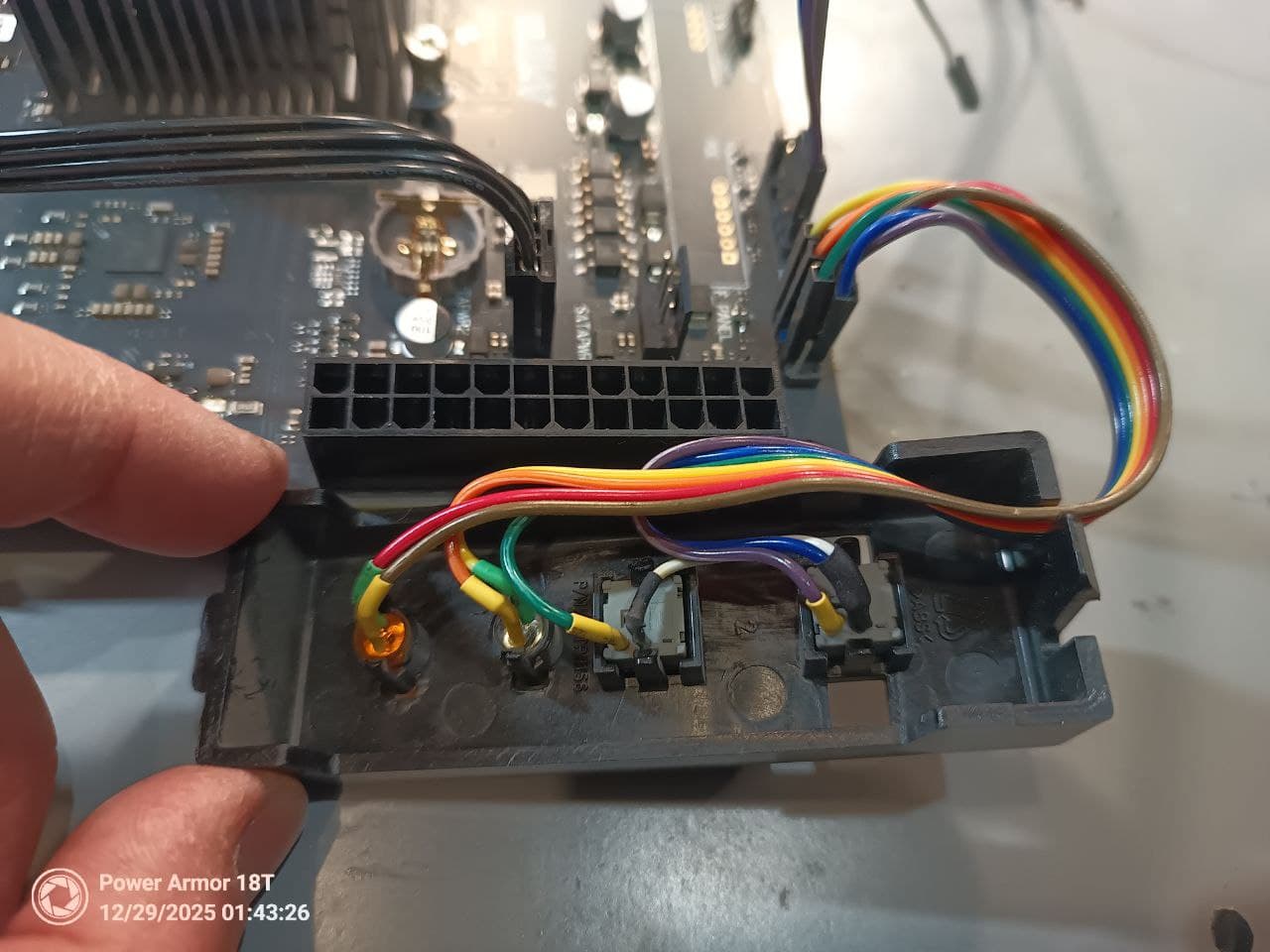

I use front panel from old PC with Power button, Reset button, HD Act and Power LEDs. All of them work very well
