[spi-待解决]st7735开机显示后会黑屏,duo v1.0.5版本

背景:
更新代码到最新。
移植st7735后,发现开机时lcd会亮,但是一旦执行到

[ 3.718097] sh (119): drop_caches: 3

之后就会屏幕黑掉,后续log是usb加载。

不清楚是不是usb加载后拉掉了spi的电。

spi配置

&spi2 {
	status = "okay";

	/delete-node/ spidev@0;


	st7789v: st7789v@0{
		compatible = "sitronix,st7789v";
		reg = <0>;
		status = "okay";
	spi-max-frequency = <48000000>;
		spi-cpol;
		spi-cpha;
		rotate = <90>;
		fps = <30>;
		rgb;
		buswidth = <8>;

		//dc-gpios = <&port 21 GPIO_ACTIVE_HIGH>;	//DC
		dc-gpios = <&porta 23 GPIO_ACTIVE_HIGH>;	//DC
		reset-gpios = <&porta 24 GPIO_ACTIVE_HIGH>; //RES
		led-gpios = <&porta 14 GPIO_ACTIVE_HIGH>; //BL

		debug = <0x0>;
	};

};

log如下:

[    0.000000] Linux version 5.10.4-tag- (youkai@ubuntu) (riscv64-unknown-linux-musl-gcc (Xuantie-900 linux-5.10.4 musl gcc Toolchain V2.6.1 B-20220906) 10.2.0, GNU ld (GNU Binutils) 2.35) #1 PREEMPT Mon Nov 6 22:54:56 +08 2023
[    0.000000] earlycon: sbi0 at I/O port 0x0 (options '')
[    0.000000] printk: bootconsole [sbi0] enabled
[    0.000000] efi: UEFI not found.
[    0.000000] Ion: Ion memory setup at 0x0000000082473000 size 26 MiB
[    0.000000] OF: reserved mem: initialized node ion, compatible id ion-region
[    0.000000] Zone ranges:
[    0.000000]   DMA32    [mem 0x0000000080000000-0x0000000083f3ffff]
[    0.000000]   Normal   empty
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000080000000-0x0000000083f3ffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000080000000-0x0000000083f3ffff]
[    0.000000] On node 0 totalpages: 16192
[    0.000000]   DMA32 zone: 222 pages used for memmap
[    0.000000]   DMA32 zone: 0 pages reserved
[    0.000000]   DMA32 zone: 16192 pages, LIFO batch:3
[    0.000000] SBI specification v0.3 detected
[    0.000000] SBI implementation ID=0x1 Version=0x9
[    0.000000] SBI v0.2 TIME extension detected
[    0.000000] SBI v0.2 IPI extension detected
[    0.000000] SBI v0.2 RFENCE extension detected
[    0.000000] riscv: ISA extensions acdfimsuv
[    0.000000] riscv: ELF capabilities acdfimv
[    0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[    0.000000] pcpu-alloc: [0] 0
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 15970
[    0.000000] Kernel command line: root=/dev/mmcblk0p2 rootwait rw console=tty0 console=ttyS0,115200 earlycon=sbi loglevel=9 riscv.fwsz=0x80000
[    0.000000] Dentry cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    0.000000] Inode-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)
[    0.000000] Sorting __ex_table...
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 28932K/64768K available (3946K kernel code, 498K rwdata, 1721K rodata, 152K init, 218K bss, 35836K reserved, 0K cma-reserved)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] rcu: Preemptible hierarchical RCU implementation.
[    0.000000] rcu: 	RCU event tracing is enabled.
[    0.000000] 	Trampoline variant of Tasks RCU enabled.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    0.000000] riscv-intc: 64 local interrupts mapped
[    0.000000] plic: interrupt-controller@70000000: mapped 101 interrupts with 1 handlers for 2 contexts.
[    0.000000] random: get_random_bytes called from start_kernel+0x2e0/0x41c with crng_init=0
[    0.000000] riscv_timer_init_dt: Registering clocksource cpuid [0] hartid [0]
[    0.000000] clocksource: riscv_clocksource: mask: 0xffffffffffffffff max_cycles: 0x5c40939b5, max_idle_ns: 440795202646 ns
[    0.000010] sched_clock: 64 bits at 25MHz, resolution 40ns, wraps every 4398046511100ns
[    0.008481] Console: colour dummy device 80x25
[    0.014665] printk: console [tty0] enabled
[    0.018916] Calibrating delay loop (skipped), value calculated using timer frequency.. 50.00 BogoMIPS (lpj=100000)
[    0.029676] pid_max: default: 4096 minimum: 301
[    0.034539] Mount-cache hash table entries: 512 (order: 0, 4096 bytes, linear)
[    0.042044] Mountpoint-cache hash table entries: 512 (order: 0, 4096 bytes, linear)
[    0.051671] ASID allocator initialised with 65536 entries
[    0.057447] rcu: Hierarchical SRCU implementation.
[    0.062874] EFI services will not be available.
[    0.068011] devtmpfs: initialized
[    0.077542] early_time_log: do_initcalls: 4664551us
[    0.083308] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.093449] futex hash table entries: 16 (order: -4, 384 bytes, linear)
[    0.100407] pinctrl core: initialized pinctrl subsystem
[    0.106367] NET: Registered protocol family 16
[    0.111512] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations
[    0.118900] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[    0.127940] thermal_sys: Registered thermal governor 'step_wise'
[    0.144109] OF: /gpio@03020000/gpio-controller@0: could not find phandle
[    0.157383] OF: /gpio@03021000/gpio-controller@1: could not find phandle
[    0.164374] OF: /gpio@03022000/gpio-controller@2: could not find phandle
[    0.171363] OF: /gpio@03023000/gpio-controller@3: could not find phandle
[    0.178347] OF: /gpio@05021000/gpio-controller@4: could not find phandle
[    0.187357] clk reset: nr_reset=64 resource_size=8
[    0.192996] get audio clk=24576000
[    0.196588] cvitek-i2s-subsys 4108000.i2s_subsys: Set clk_sdma_aud0~3 to 24576000
[    0.218308] dw_dmac 4330000.dma: CVITEK DMA Controller, 8 channels, probe done!
[    0.226943] SCSI subsystem initialized
[    0.231299] usbcore: registered new interface driver usbfs
[    0.237139] usbcore: registered new interface driver hub
[    0.242783] usbcore: registered new device driver usb
[    0.251581] Ion: ion_parse_dt_heap_common: id 0 type 2 name carveout align 1000
[    0.259698] Ion: rmem_ion_device_init: heap carveout base 0x0000000082473000 size 0x0000000001acd000 dev (____ptrval____)
[    0.271069] ion_carveout_heap_create, size=0x1acd000
[    0.276342] cvi_get_rtos_ion_size, rtos ion_size get:0x0
[    0.411908] platform carveout: [ion] add heap id 0, type 2, base 0x82473000, size 0x1acd000
[    0.421009] Advanced Linux Sound Architecture Driver Initialized.
[    0.428759] clocksource: Switched to clocksource riscv_clocksource
[    0.448561] NET: Registered protocol family 2
[    0.454220] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear)
[    0.463017] TCP established hash table entries: 512 (order: 0, 4096 bytes, linear)
[    0.470895] TCP bind hash table entries: 512 (order: 0, 4096 bytes, linear)
[    0.478129] TCP: Hash tables configured (established 512 bind 512)
[    0.484731] UDP hash table entries: 128 (order: 0, 4096 bytes, linear)
[    0.491549] UDP-Lite hash table entries: 128 (order: 0, 4096 bytes, linear)
[    0.499011] NET: Registered protocol family 1
[    0.504236] RPC: Registered named UNIX socket transport module.
[    0.510427] RPC: Registered udp transport module.
[    0.515282] RPC: Registered tcp transport module.
[    0.520201] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    0.529610] Initialise system trusted keyrings
[    0.534544] workingset: timestamp_bits=62 max_order=13 bucket_order=0
[    0.548891] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.556077] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[    0.563340] Key type asymmetric registered
[    0.567604] Asymmetric key parser 'x509' registered
[    0.579088] Serial: 8250/16550 driver, 5 ports, IRQ sharing disabled
[    0.587890] printk: console [ttyS0] disabled
[    0.592472] 4140000.serial: ttyS0 at MMIO 0x4140000 (irq = 15, base_baud = 1562500) is a 16550A
[    0.601597] printk: console [ttyS0] enabled
[    0.610239] printk: bootconsole [sbi0] disabled
[    0.623176] cvi-spif 10000000.cvi-spif: unrecognized JEDEC id bytes: 00 00 00 00 00 00
[    0.631497] cvi-spif 10000000.cvi-spif: device scan failed
[    0.637244] cvi-spif 10000000.cvi-spif: unable to setup flash chip
[    0.650222] libphy: Fixed MDIO Bus: probed
[    0.655945] dwc2 4340000.usb: axi clk installed
[    0.660769] dwc2 4340000.usb: apb clk installed
[    0.665533] dwc2 4340000.usb: 125m clk installed
[    0.670387] dwc2 4340000.usb: 33k clk installed
[    0.675149] dwc2 4340000.usb: 12m clk installed
[    0.680005] dwc2 4340000.usb: EPs: 8, dedicated fifos, 3072 entries in SPRAM
[    0.688009] dwc2 4340000.usb: DWC OTG Controller
[    0.692936] dwc2 4340000.usb: new USB bus registered, assigned bus number 1
[    0.700274] dwc2 4340000.usb: irq 36, io mem 0x04340000
[    0.706746] hub 1-0:1.0: USB hub found
[    0.710824] hub 1-0:1.0: 1 port detected
[    0.716702] usbcore: registered new interface driver usb-storage
[    0.723455] i2c /dev entries driver
[    0.729403] sdhci: Secure Digital Host Controller Interface driver
[    0.735897] sdhci: Copyright(c) Pierre Ossman
[    0.740471] sdhci-pltfm: SDHCI platform and OF driver helper
[    0.746653] cvi:sdhci_cvi_probe
[    0.796779] mmc0: SDHCI controller on 4310000.cv-sd [4310000.cv-sd] using ADMA 64-bit
[    0.805034] cvi_proc_init cvi_host 0x(____ptrval____)
[    0.811068] usbcore: registered new interface driver usbhid
[    0.820788] usbhid: USB HID core driver
[    0.825713] fb_st7789v spi0.0: fbtft_property_value: buswidth = 8
[    0.832199] fb_st7789v spi0.0: fbtft_property_value: debug = 0
[    0.838386] fb_st7789v spi0.0: fbtft_property_value: rotate = 0
[    0.844649] fb_st7789v spi0.0: fbtft_property_value: fps = 30
[    0.930629] mmc0: new high speed SDHC card at address aaaa
[    0.937335] mmcblk0: mmc0:aaaa SU08G 7.40 GiB
[    0.946527]  mmcblk0: p1 p2 p3
[    1.356494] random: fast init done
[    1.373156] Console: switching to colour frame buffer device 16x10
[    1.380940] graphics fb0: fb_st7789v frame buffer, 128x160, 40 KiB video memory, 4 KiB buffer memory, fps=31, spi0.0 at 48 MHz
[    1.397126] cvitek-i2s 4100000.i2s: cvi_i2s_probe
[    1.403882] cvitek-i2s 4110000.i2s: cvi_i2s_probe
[    1.414475] cvitek-i2s 4120000.i2s: cvi_i2s_probe
[    1.427565] cvitek-i2s 4130000.i2s: cvi_i2s_probe
[    1.437222] cviteka-adc sound_adc: cviteka_adc_probe, dev name=sound_adc
[    1.445878] cviteka-adc sound_adc: cviteka_adc_probe start devm_snd_soc_register_card
[    1.461330] cvitekaadc 300a100.adc: cvitekaadc_probe
[    1.473553] cviteka-dac sound_dac: cviteka_dac_probe, dev name=sound_dac
[    1.485123] cvitekadac 300a000.dac: cvitekadac_probe
[    1.491848] cvitekadac_probe gpio_is_valid mute_pin_l
[    1.502790] cv1835-max98357a sound: snd card name = cv1835_max98357a
[    1.526922] NET: Registered protocol family 10
[    1.534259] Segment Routing with IPv6
[    1.545607] NET: Registered protocol family 17
[    1.551737] random: crng init done
[    1.558855] Loading compiled-in X.509 certificates
[    1.603273] cviteka-adc sound_adc: cviteka_adc_probe, dev name=sound_adc
[    1.611808] cviteka-adc sound_adc: cviteka_adc_probe start devm_snd_soc_register_card
[    1.627825] cviteka-dac sound_dac: cviteka_dac_probe, dev name=sound_dac
[    1.642673] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[    1.668252] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[    1.677043] cfg80211: failed to load regulatory.db
[    1.683520] ALSA device list:
[    1.687740] dw-apb-uart 4140000.serial: forbid DMA for kernel console
[    1.715690] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
[    1.726136] VFS: Mounted root (ext4 filesystem) on device 179:2.
[    1.737466] devtmpfs: mounted
[    1.741510] Freeing unused kernel memory: 152K
[    1.747355] Kernel memory protection not selected by kernel config.
[    1.759179] Run /sbin/init as init process
[    1.769483]   with arguments:
[    1.777022]     /sbin/init
[    1.780446]   with environment:
[    1.784627]     HOME=/
[    1.787724]     TERM=linux
[    1.791158] early_time_log: run_init_process: 6378169us
[    1.878890] EXT4-fs (mmcblk0p2): re-mounted. Opts: errors=remount-ro
[    2.557255] cv180x_sys: bad vermagic: kernel tainted.
[    2.563788] Disabling lock debugging due to kernel taint
[    2.570885] cv180x_sys: loading out-of-tree module taints kernel.
[    2.600614] res-reg: start: 0xa0c8000, end: 0xa0c801f, virt-addr(ffffffd0040c1000).
[    2.619673] CVITEK CHIP ID = 22
[    2.638827] cvi_rtos_cmdqu_probe start ---
[    2.649226] name=1900000.rtos_cmdqu
[    2.657030] res-reg: start: 0x1900000, end: 0x1900fff, virt-addr(ffffffd0040c5000).
[    2.666851] cvi_rtos_cmdqu_probe DONE
[    2.672188] [cvi_spinlock_init] success
[    2.896807] RTOS_CMDQU_SEND_WAIT timeout
[    2.901892] SYS_CMD_INFO_LINUX_INIT_DONE fail
[    2.907782] communicate with rtos fail
[    2.926365] cif a0c2000.cif: cam0 clk installed
[    2.932457] cif a0c2000.cif: cam1 clk installed
[    2.942807] cif a0c2000.cif: vip_sys_2 clk installed
[    2.955838] cif a0c2000.cif: clk_mipimpll clk installed 00000000833de2c3
[    2.967266] cif a0c2000.cif: clk_disppll clk installed 00000000d25175b7
[    2.976056] cif a0c2000.cif: clk_fpll clk installed 00000000805f969e
[    2.989682] cif a0c2000.cif: (0) res-reg: start: 0xa0c2000, end: 0xa0c3fff.
[    3.006362] cif a0c2000.cif:  virt-addr(000000009c846059)
[    3.013568] cif a0c2000.cif: (1) res-reg: start: 0xa0d0000, end: 0xa0d0fff.
[    3.022592] cif a0c2000.cif:  virt-addr(00000000ccabe0bb)
[    3.033643] cif a0c2000.cif: (2) res-reg: start: 0xa0c4000, end: 0xa0c5fff.
[    3.051410] cif a0c2000.cif:  virt-addr(000000005eb7584c)
[    3.058559] cif a0c2000.cif: (3) res-reg: start: 0x3001c30, end: 0x3001c5f.
[    3.067584] cif a0c2000.cif:  virt-addr(00000000e6740473)
[    3.078725] cif a0c2000.cif: no pad_ctrl for cif
[    3.091406] cif a0c2000.cif: request irq-26 as cif-irq0
[    3.101042] cif a0c2000.cif: request irq-27 as cif-irq1
[    3.108101] cif a0c2000.cif: rst_pin = 424, pol = 1
[    3.129320] snsr_i2c snsr_i2c: i2c:-------hook 0
[    3.138214] snsr_i2c snsr_i2c: i2c:-------hook 1
[    3.145220] snsr_i2c snsr_i2c: i2c:-------hook 2
[    3.151855] snsr_i2c snsr_i2c: i2c:-------hook 3
[    3.158391] snsr_i2c snsr_i2c: i2c:-------hook 4
[    3.222381] vi_core_probe:203(): res-reg: start: 0xa000000, end: 0xa07ffff, virt-addr(ffffffd004480000).
[    3.234335] vi_core_probe:216(): irq(28) for isp get from platform driver.
[    3.247718] vi_tuning_buf_setup:253(): tuning fe_addr[0]=0x8171f490, be_addr[0]=0x81717290, post_addr[0]=0x81700000
[    3.270064] vi_tuning_buf_setup:253(): tuning fe_addr[1]=0x816df490, be_addr[1]=0x816d7290, post_addr[1]=0x816c0000
[    3.289968] vi_tuning_buf_setup:253(): tuning fe_addr[2]=0x816ff490, be_addr[2]=0x816f7290, post_addr[2]=0x816e0000
[    3.309777] sync_task_init:177(): sync_task_init vi_pipe 0
[    3.317037] sync_task_init:177(): sync_task_init vi_pipe 1
[    3.324287] sync_task_init:177(): sync_task_init vi_pipe 2
[    3.340935] vi_core_probe:252(): isp registered as cvi-vi
[    3.411286] cvi_dwa_probe:487(): done with rc(0).
[    3.449977] cv180x-cooling cv180x_cooling: elems of dev-freqs=6
[    3.466628] cv180x-cooling cv180x_cooling: dev_freqs[0]: 850000000 500000000
[    3.475920] cv180x-cooling cv180x_cooling: dev_freqs[1]: 425000000 375000000
[    3.489002] cv180x-cooling cv180x_cooling: dev_freqs[2]: 425000000 300000000
[    3.507107] cv180x-cooling cv180x_cooling: Cooling device registered: cv180x_cooling
[    3.557705] jpu ctrl reg pa = 0xb030000, va = 000000002553fa1c, size = 256
[    3.566939] end jpu_init result = 0x0
[    3.700227] cvi_vc_drv_init result = 0x0
[    3.718097] sh (119): drop_caches: 3
[    3.919406] dwc2 4340000.usb: new device is high-speed
[    3.942269] using random self ethernet address
[    3.942290] using random host ethernet address
[    3.994692] usb0: HOST MAC da:6e:e0:d2:0c:45
[    3.995030] usb0: MAC ce:9d:f5:ec:9e:27
[    3.995107] dwc2 4340000.usb: bound driver configfs-gadget
[    4.135360] dwc2 4340000.usb: new device is high-speed
[    4.172829] dwc2 4340000.usb: new address 11
[    4.351213] dwc2 4340000.usb: new device is high-speed
[    4.388549] dwc2 4340000.usb: new address 11
[    5.016822] IPv6: ADDRCONF(NETDEV_CHANGE): usb0: link becomes ready

目前看和之前版本的log差在最后的ipv6,但是又是usb之后没有办法显示的。

结合现象和log看,如果usb先起来,那就会让lcd息屏,否则正常。

可以正常显示

[    3.942048] sh (108): drop_caches: 3
[    4.106322] using random self ethernet address
[    4.106341] using random host ethernet address
[    4.133613] dwc2 4340000.usb: new device is high-speed

自动息屏

[    3.718097] sh (119): drop_caches: 3
[    3.919406] dwc2 4340000.usb: new device is high-speed
[    3.942269] using random self ethernet address
[    3.942290] using random host ethernet address

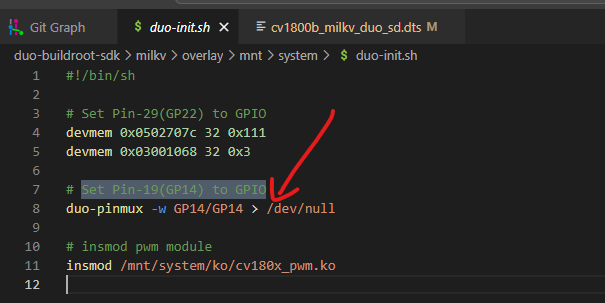

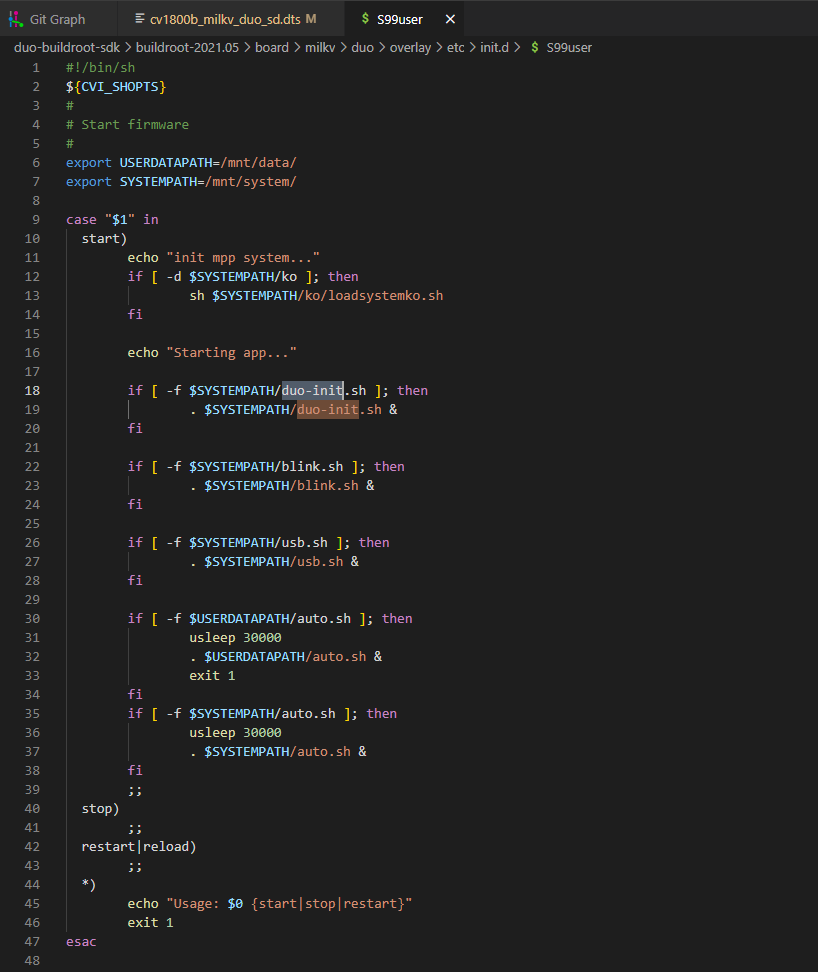

Hi,我这边也遇到这个问题,最后发现是启动后自动执行了这个脚本,脚本设置了把ST7735 的背光关闭。


1 Like
